Description

PackageComponents:

CP210-CAN Control Box
MD205-CAN Laser Receiver
Power Cable
Blade Cable
Receiver to Control Box Connection Cable
Aluminum Carry Case

features:

Control Box CP210-CAN:
Selectable Accuracies
Water-Resistant: IP66
Capability of Remote Switch Connectivity
Displaying Error Message When No Connection Between Receiver & Control Box
Short circuit protection
Voltage Range: 12 to 24 V
Blade Up and Down Speed Control in 80 Increments through Menu

Laser Receiver MD205-CAN:

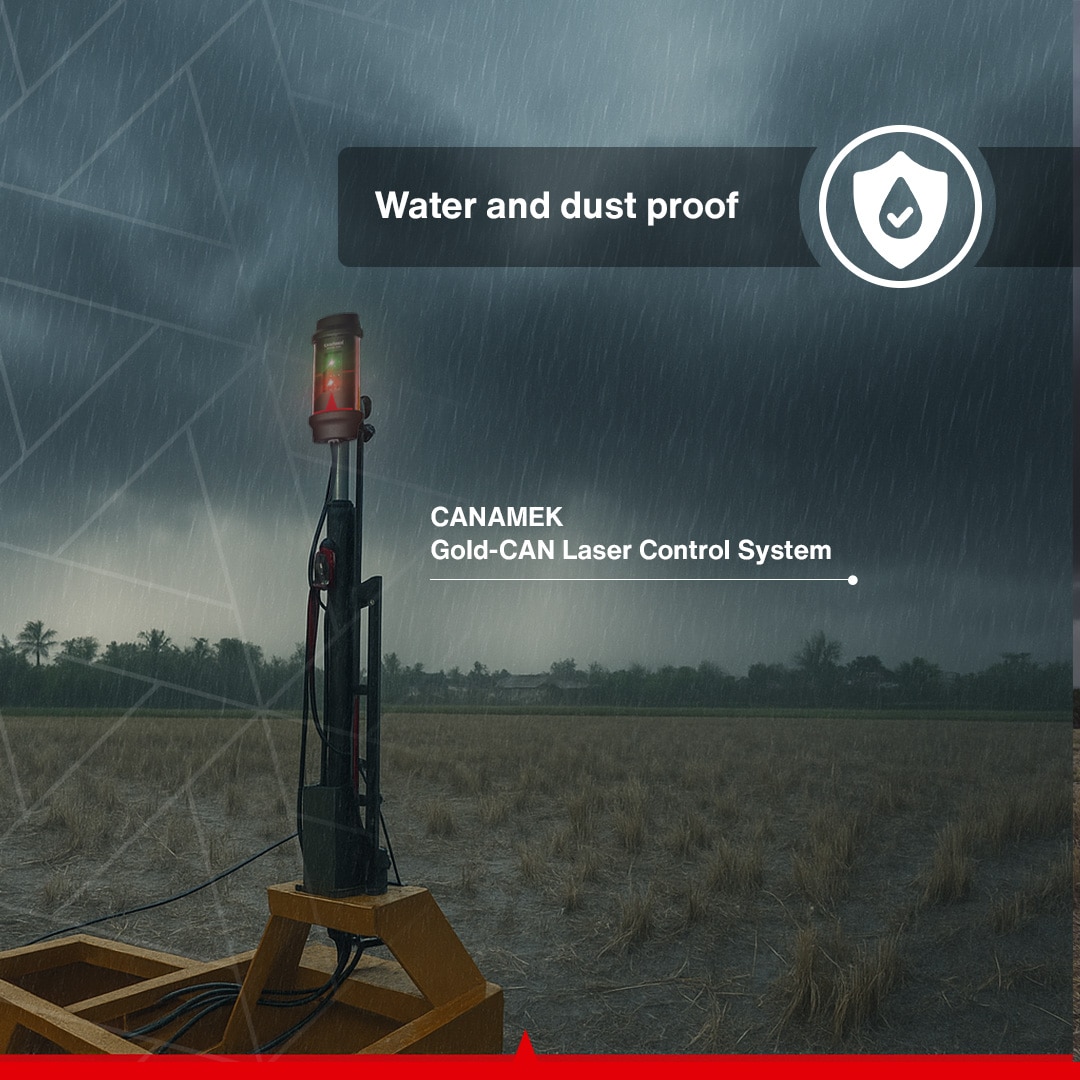

Alloy Aluminum Body
Water-Resistant: IP68
Capture Range: 360°
Measurement Window: 190 mm
Weight: 2.850 Kg
Receiver Communicates and is Powered via CAN bus
Voltage Range: 12 to 24 V
Mechanical Clamp Mount for Secure Attachment on Machines
Real-Time Laser Bounce Filtration
Flashing LED Indicators:
Red: Receiver is above grade
Green; Receiver is on grade
Yellow; Receiver is below grade

Cables and Connectors:
Water & Dust Proof Connectors
Circular Mill Connectors
Appropriate for High Mechanical Stress
Appropriate for Low temperatures
Oil Resistant
Power Cable Length: 13.12 ft
Blade Cable Length: 24.77 ft
Receiver to Control Box Connection Cable Length: 36 – 46 ft
